Outdoor LED Puck Light

Outdoor LED Puck Light

$20.95$27.25

4W Outdoor LED Puck Light suitable for use in outdoor and wet locations such as deck and step lighting. Available in 2700K, 3000K, Dim-to-Warm, 4000K, RGB (4-wire), RGBW (5-wire).

Surface mount or recess mount with the appropriate trims. Light engine only, the trims are sold separately.

Product Options:

Outdoor LED Puck Light

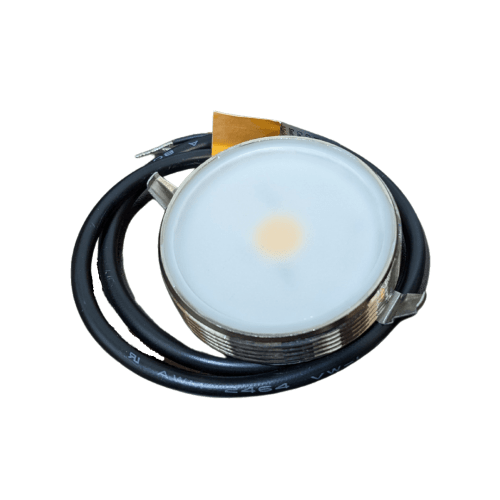

This 4W Outdoor LED Puck Light is suitable for use in outdoor and wet locations such as deck and step lighting. This 12V DC puck light uses just one COB LED to emit 320 lumens of light. Frosted lens covers over the LED to ensure an even distribution of light throughout. Available in 2700K, 3000K, Dim-to-Warm, 4000K, RGB (4-wire), RGBW (5-wire).

Installation is quick and easy. You can surface mount or recess mount the puck light and the trims are available in White, Black or Brushed Nickel. Please note that the trims are sold separately.

Surface Mount Installation:

First, install the Surface Mount Trim with the provided screws. If applicable, place the Scoop Insert between the light engine and the Trim Ring. Twist the screw-style recess trim onto the light engine to lock it in place. Finally, friction-fit the light engine into the surface mount trim, and you’re done!

Recess Mount Installation:

If applicable, place the Scoop Insert between the light engine and the Trim Ring. Simply twist the screw-style recess trim onto the light engine to lock it in place. Then, install the light engine into a 57mm (2-1/4″) cutout.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email info@ledlightscanada.com. We are here to help.

Description: Includes LED COB puck light with 50cm (20″) wire lead
LEDs: COB LED
Voltage: 12V DC
Wattage: 4W
Light output: 298-320 lumens
Light Direction: 110 degree
Lifespan: 60,000 hours
Colour: 2700K, 3000K, Dim-to-Warm (30K to 18K), 4000K, RGB, RGBW
Cover: Frosted Glass
Cut Out to recess: Ø2.25 in
Trim ring: Certification: ETL approved (CSA and UL recognized)
Dimmable: YES
These SMD LED Puck lights are designed to work with a 12V DC LED Driver and are not a direct replacement for existing halogen puck lights which operate on 12V AC current. If you are replacing your halogen puck lights you must also replace the power supply with a 12V DC LED driver.

View Full Specs
