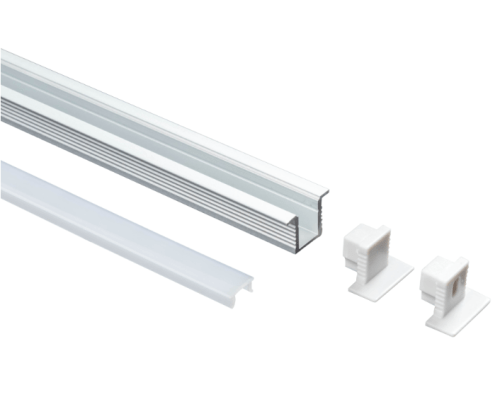

Recessed Aluminum Profile with Lens

Recessed Aluminum Profile with Lens


Add a profile when using LED flex strip to protect your lights and make it look more like a finished product. Enquire about using these as your kitchen under cabinet lights or display accent lighting. Comes in different styles to meet your needs. Available in a surface mount, corner profile and recessed channel.

Product Options:

SKU: PRO921, PRO922, PRO928, PRO972, PRO972B, PRO974, PRO974B, PRO977, PRO977B, PRO981B, PRO985 Categories: , Tags: , , , , , , ,

Recessed Aluminum Profile with Lens

Do you want to ensure that your LED flex strip stays protected and clean?

Use any style of our Aluminum Profile with Lens to protect your LED flex strip from dust, steam, grease, or food spills. Profiles will help ensure the maximum lifespan of your LED flex by drawing heat away. It also keeps the lights in place in high-exposure areas such as shelves, cabinets, and closets. The same benefits apply to commercial and retail applications using profiles in display cases and shelving.

There is a variety of ways to mount the profiles. You can use the included clips, double-sided 3M tape. For a permanent installation, you can screw the profile directly into the surface and lay the flex over the screw head. The length of each profile is one meter. Any style can be cut down with a regular hack saw and finished to the desired length. Included with each profile are a frosted lens, end caps, and mounting clips.

Additional end caps and clips are available for purchase. Please note that the RGBW flex strip (12mm wide) will only fit in the surface mount or recessed style profile. Contact us to discuss how we can customize an under-cabinet lighting system for you.

Do you have any questions? Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll-Free at +1 800-677-2698 or email. We are here to help. LED lights Canada has been helping Canadians for over 15 years and we are glad to share our experience with you. Also, check our Instagram account, Like, Follow and Share for more upcoming events, new products and sales.


Recessed Channel width: Flange 24mm Outside 17mm Inside 12mm
Recessed Channel depth: Bottom to bottom of flange 5mm Bottom to surface of flange 7mm
Full Specs

Recessed Wide Channel Width: Flange 28.05mm Outside 22.02mm Inside 20.05mm
Recessed Wide Channel depth: Bottom to bottom of flange 9.2mm Bottom to surface of flange 10.72mm
Full Specs

Recessed 5mm Channel Width: Flange 12.80mm Outside 8mm Inside 5.6mm
Recessed 5mm Channel Depth: Bottom to top of flange 9mm
Full Specs

Recessed with Spring Clips Width: Flange 65mm Outside 50mm Inside 39.18mm
Recessed with Spring Clips Depth: Bottom to top of flange 32mm
Full Specs

Recessed Side Exposed Width: Outside 7.3mm inside 5.3mm
Recessed Side Exposed Depth: Bottom to top of flange 9.3mm
Full Specs

Recessed with Flat Lens Width: Flange 24mm Outside 18.31mm Inside 11mm
Recessed with Flat Lens Depth: Bottom to top of flange 6.94mm
Full Specs
