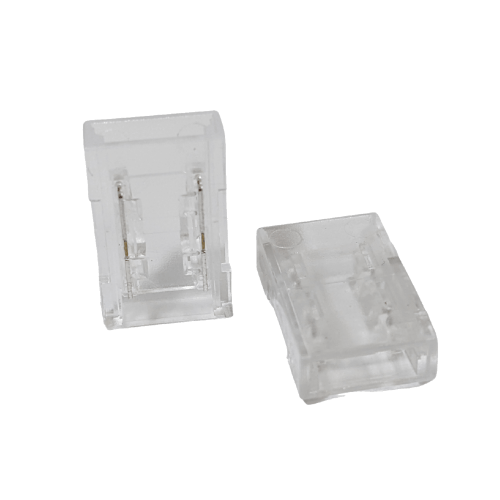

COB PCB Splice Connector

COB PCB Splice Connector

$1.30

Double sided COB PCB Splice Connector for single colour flexible strip lights. Makes secure connections without any soldering.

Ideal for use with the 12V COB and 24V COB indoor flex strips. Available in 8mm and 10mm width.

Fits most of our aluminum profiles.

Product Options:

COB PCB Splice Connector

Use the solderless COB PCB Splice Connector whenever you need to connect two pieces of LED flex strips together. Pair the COB PCB Splice Connector with the COB PCB Wire Lead for strip-to-power connections, and the COB PCB Corner Connector to complete your corner installations.

These easy-to-use solderless splice connectors take seconds to install and will make the perfect splice connection every time. Just push your flex strip through the gap. Make sure that the copper contacts on your strip reach the inner walls of the connector. To secure the connection, crimp the two metal tabs so that it pierces through the flex strip’s PCB. Repeat the steps for the other end of the connector and you’re done!

This connector creates a secure connection without the need for soldering. Be sure to watch your polarity when working with all LED flex strips. Your positive and negative sides of the flex must always line up or the strip will not light.

Available in 8mm and 10mm width. Ideal for use with the 8mm 12V COB and 24V COB indoor strips. Fits within most of our aluminum profiles.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email info@ledlightscanada.com. We are here to help.

Type: Splice Connector – strip to strip
Strip Width: 8mm
Strip Type: 2-pin, 2-conductor, single colour
Max. Voltage: 36V DC
Max. Current: 3.5A
Size: 15.6 x 9.6 x 3.3mm
Material: Polycarbonate, Copper, and PVC
Wire: no wire
