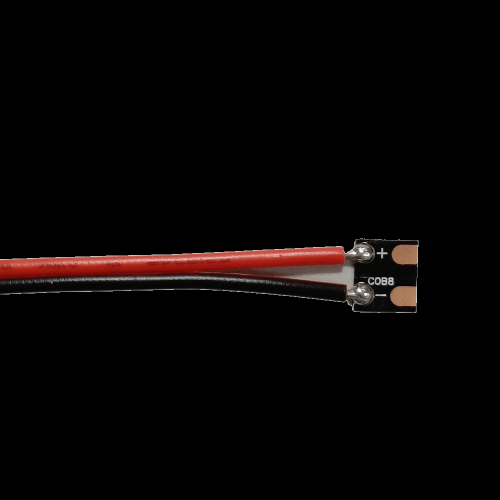

COB PCB Wire Lead

COB PCB Wire Lead

$0.65$1.59

Need a wire lead on the end of your single colour LED COB Flex Strip? Use the COB PCB Wire Lead with the invisible COB Splice Connector to add a lead to your cut pieces of COB flex strips.

Easy to use and creates a secure connection by piercing through the strip’s PCB. Available in 8mm and 10mm width, in 15cm or 30cm wire lengths.

Ideal for the 12V COB and 24V COB indoor flex strips. Low profile and fits within most of our aluminum profiles.

Product Options:

COB PCB Wire Lead

Need a wire lead on the end of your single colour LED Flex strip lighting? Use the COB PCB Wire Lead to add a lead to your cut pieces of COB indoor strips. Please note that the clear COB Splice Connector is required to complete the installation.

installation is quick and simple. Just push the PCB wire lead through the gap in the splice connector, and insert the flex strip on the other end of the connector. Make sure that both PCBs reach the inner walls of the connector. To secure the connection, crimp the two metal tabs so that they pierce through both PCBs and you’re done!

This connector creates a secure connection without the need for soldering. Be sure to watch your polarity when working with all LED flex strips. Your positive and negative sides of the flex must always line up or the strip will not light.

Available in 8mm and 10mm width. Ideal for use with the 8mm 12V COB and 24V COB indoor strips. Wire Lengths are available in 15cm and 30cm for longer installations.

Low profile and fits within most of our aluminum profiles.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email us at info@ledlightscanada.com. We are happy to help.

Type: Lead – strip to power
Strip Width: 8mm, 10mm
Strip Type: 2-pin, 2-conductor, single colour
Length: 150mm, 300mm
Material: Polycarbonate, Copper, and PVC
Wire: 150mm, 20AWG
Requires: COB Splice Connector
