COB PCB Corner Connector

COB PCB Corner Connector


Use the COB PCB Corner Connector to turn the corner when installing our single colour LED flex strip lights. Available in 8mm and 10mm width in 15cm or 30cm lengths.

Requires the COB PCB Splice Connector to complete installation. Easy to use and creates a secure connection by piercing through the strip’s PCB. Ideal for the 12V COB and 24V COB indoor flex strips.

Low profile and fits perfectly within most of our aluminum profiles.

Product Options:

COB PCB Corner Connector

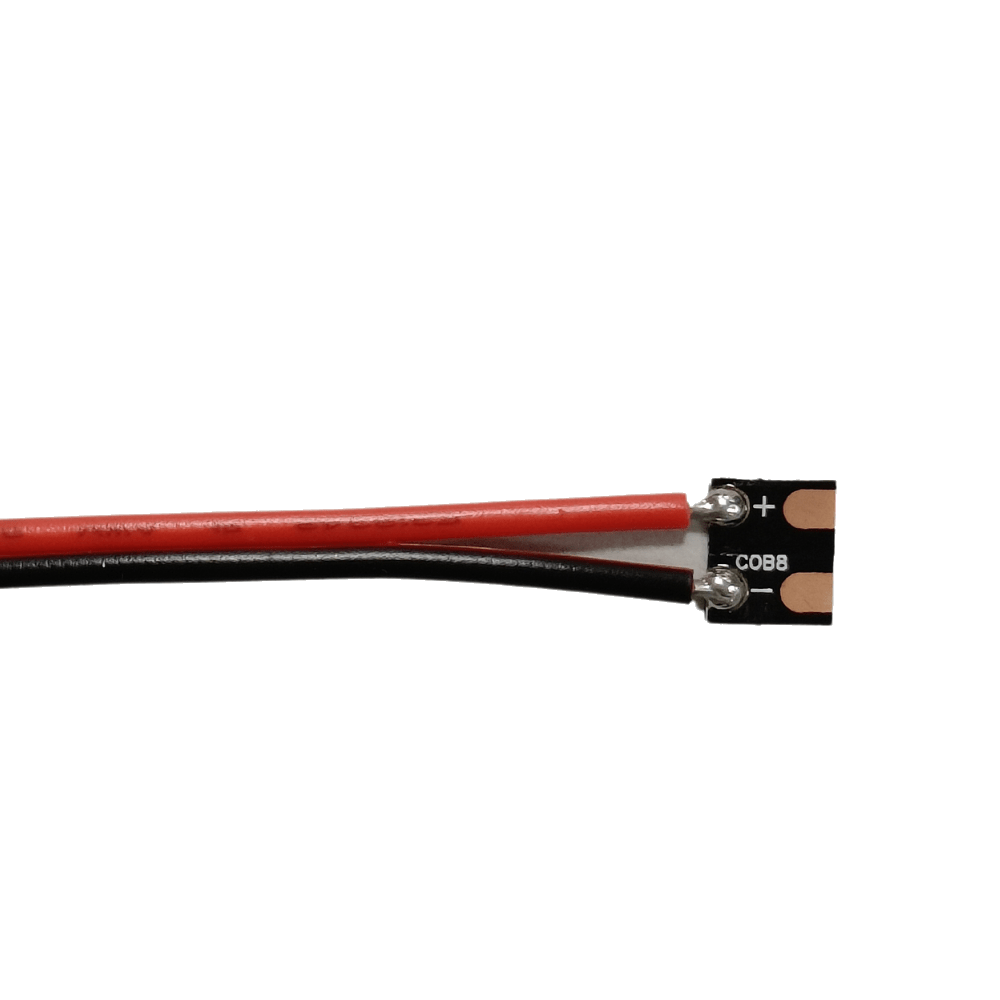

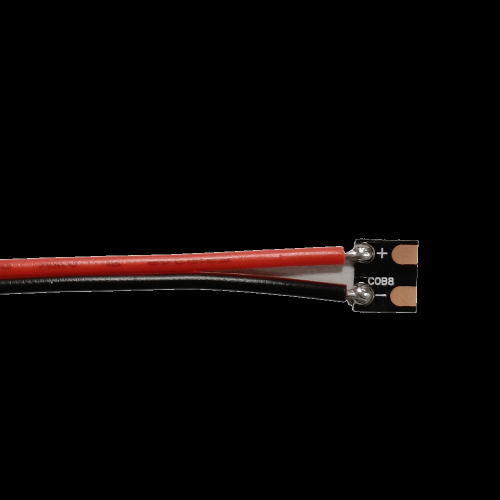

This solderless COB PCB Corner Connector is used whenever you need to “make a turn” or a corner when installing single colour COB flexible strips. Please note that COB PCB Splice Connector is required to complete the installation.

To install, push the corner connector’s PCB through the gap in the splice connector. Then, insert the flex strip through the other end of the splice connector. Crimp the two metal tabs down so that they pierce through the PCBs. Repeat the steps for the other end of the corner connector and you’re done!

This connector creates a secure connection without the need for soldering. Be sure to watch your polarity when working with all LED flex strips. Your positive and negative sides of the flex must always line up or the strip will not light.

Available in an 8mm and 10mm width. Ideal for use with the 8mm 12V COB and 24V COB indoor strips. Wire lengths are available in 15cm and 30cm.

Low profile and fits within most of our aluminum profiles.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email We are here to help.

Type: Corner Connector – strip to strip
Strip Width: 8mm, 10mm
Strip Type: 2-pin, 2-conductor, single colour
Max. Voltage: 36V DC
Max. Current: 3.5A
Size: 15.6 x 9.6 x 3.3mm
Material: Polycarbonate, Copper, and PVC
Wire: 15cm, 30m; 20AWG
Requires: COB PCB Splice Connector
