Microwave Motion Sensor for ST4 and VT4
Microwave Motion Sensor for ST4 and VT4
$66.56

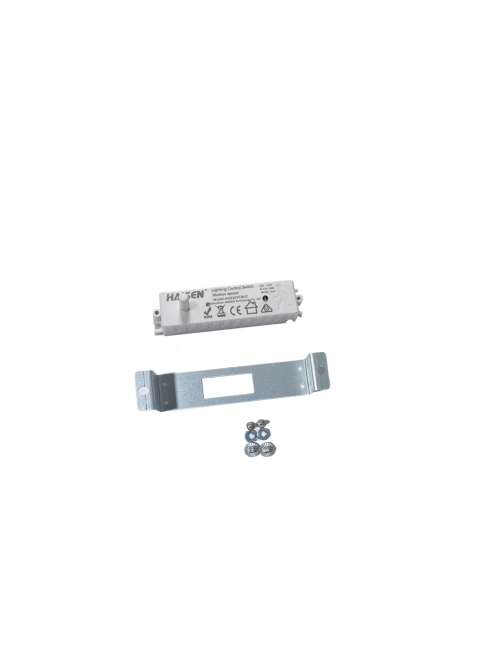

This Microwave Motion Sensor for ST4 and VT4 comes with a 26AWG, mount, and screws for installation.
See spec sheet for more information and important application specific details
Product Options:
In stock
Microwave Motion Sensor for ST4 and VT4
This Microwave Motion Sensor for ST4 and VT4 comes with a 26AWG, mount, and screws for installation. You can mount this motion sensor at a maximum height of 4 meters. Installation notes, Microwaves are reflected by metal. This product should not be used in applications with metal walls and ceilings. High sensitivity and/or false detection can occur.
This product should not be installed next to large operating machines such as ventilators/ceiling fans. By doing so, you may risk false triggering caused by machine vibration
Also, one of the features of this motion sensor is standby dimming. The Detection area for this motion sensor is 50% – 100%.
Do you have any questions? Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll-Free at +1 800-677-2698 or email. We are here to help. LED Lights Canada has been helping Canadians for over 15 years and we are glad to share our experience with you.
Lastly, Check our Instagram account, Like, Follow, and Share for more upcoming events, new products, and sales.
Operating Voltage: 12VDC
Operating Current: 1 A (Max)
Detection Area: 50% 100%
Hold Time: 5s / 30s / 1min / 10m
Daylight Threshold: 2lux / 30lux / 50lux /
Disable Mounting Height: 2.5m – 4m (8.2′-13.12′)
Detection Range: Max.10m (32.8′)
Hold Time: 5s / 30s / 1min / 10m
Daylight Threshold: 2lux / 30lux / 50lux / Disable
Mounting Height: 2.5m – 4m (8.2′-13.12′)
Detection Range: Max.10m (32.8′)
Operating Temp: -20°C to 60°C
Stand-by Power: <0.5W
Stand-by Period: 0s / 30s / 20min / +∞
Stand-by Dimming: 10% / 20% / 30% / 50%
Microwave Frequency: +75MHz
Microwave Power: <1mW IP Rating IP20
