LED Sign Modules

LED Sign Modules

$41.00$55.00

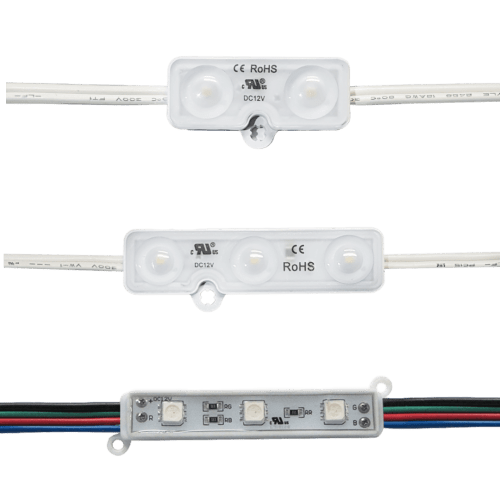

LED Sign Modules used for backlighting signs and channel letters. Also great for use outside on decks, under benches, and anywhere you need some light. Available in warm white ( 2LED), cool white ( 3 LED) and RGB colour options. They are IP67 rated for use outdoors.

Product Options:

SKU: TSK1932 Categories: ,

LED Sign Modules

LED sign modules used for backlighting in channel letters but are also are an excellent choice for outdoor lighting for decks, pergolas, under benches or to wrap around a swing set. They are packaged with 25 modules per bag with  3 inches of wire between each module. When stretched out, the 25 modules will cover 12.5 ft. You can cut off what you need or splice strings together for longer lengths. The modules are waterproof and rated at IP67, making them a safe choice for all your outdoor lighting projects. Install using the pre-applied 3M double-sided tape, or screwed in through the screw hole tabs.

Each module contains 5050 LEDs that have a wide light spread of 160 degrees. The RGB Sign modules work with an RF remote or Bluetooth or WiFi using a phone App. Take a look at our selection of  RGB controllers.

Product Features:
Package Size: includes 25 modules
LED Type: 5050
Light Colour: 3000K Warm White ( 2 LED diodes only), 6000K Cool White or RGB
Wattage: 1.02 for 3 LED 6000K Module and 0.72W for 3 LED RGB modules (per module) 25.5 W or 18W per strand of 25 Modules

The flexibility of these LED Sign Modules allows you to put light almost anywhere. Each module varies in wattage, but a 12V DC LED Driver powers all. Available in 3000K warm white, 6000K Cool White and RGB and covered by a three-year warranty.



Package Size: includes 25 modules
LED Type: 5050
Light Colour: 3000K Warm White ( 2 LED diodes only), 6000K Cool White or RGB
Wattage: 1.02 for 3 LED 6000K Module and 0.72W for 3 LED RGB module (per module) ; 25.5 W or 18W per strand of 25 Modules
Spread: 160 Degree Module
Size: 3.5″ x 0.5″ x 0.25″
Total Length: 12.5 ft includes 25 modules and approx 3″ wire length between each module
Lumens: 75 LMS /each (white)
Installation: 3M double sided tape included, screwed in (screw holes in module)
Warranty: 3 years
Waterproof: IP67 Rated

Download the full specs:

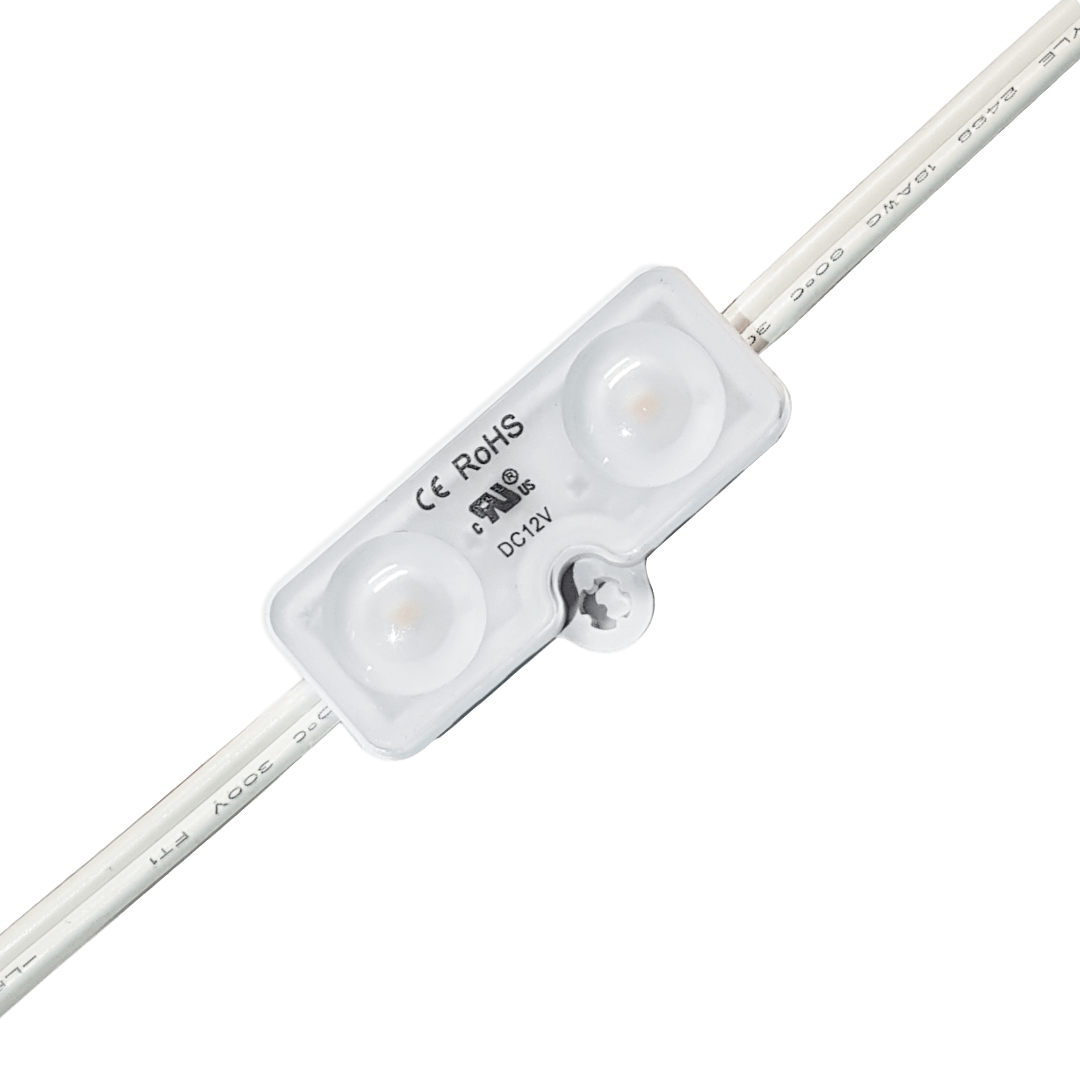

3000K (2LED/Module): TSK1940
5500K Cool White: TSK1933
RGB: TSK1934
