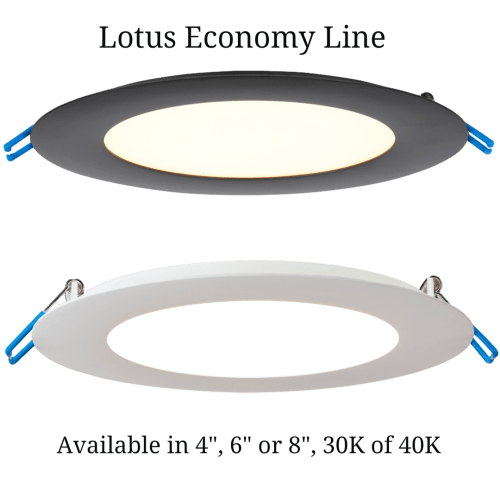

Economy Line Lotus LED Panels

Economy Line Lotus LED Panels


Super Slim- Only 0.5 inch thick

The Economy Line Lotus Panels do not require a pot light housing. Install your lights freely since they only need 1.5 inches clearance to install. Save time and money with these LED pot light replacements.

New Colour options, all in the standard white trim:

  • Special order Dim to Warm (30K to 20K) in 4-inch
  • 3000K warm white
  • 4100K natural white

Alternative trim options are available for special order.

Product Options:

Economy Line Lotus LED Panels

These Economy Line Lotus LED panels are a cost-effective alternative Lotus model. Just like the Super Slim models, they install without a standard “Pot Light Can.” No need to worry about working around obstacles above the ceiling since all you need is 1.5 inches of clearance to install these pot lights.

You can install these panels in insulated or dropped ceilings. Both the light and the junction box are IC Rated, allowing for direct contact with insulation. The junction box comes with the panel light and holds the dimmable driver in an isolated compartment so the line voltage splice can be in the same connection box.

Do you need outside soffit lights? All of the Lotus models are 3rd party tested and certified to -40C, so there will be no problem putting them outside.

Colour temperature choices are 3000K Warm White, 4100K Natural White, in the standard White trim. NEW Dim to Warm option in 4-inch, where the panel is at 3000K at full brightness and dims down to a warm and cozy 2000K, with a standard wall dimmer.

Alternative trim options are available for special order. Spec sheets for all of the available sizes are available for download in the tech specs section of this page. They sizes are in 4 inch, 6 inch and 8-inch.

View our full selection of Recessed Pot Lights.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email We are here to help.

Installs without a pot light can
IC Rated for direct contact with insulation
Just 1.5″ clearance needed
Side lit, so you do not see the LEDs
Rated to -40C
Isolated LED Driver inside the junction box
Light Temperature: 3000K Warm White, 4100K Natural White, Dim to Warm (30K to 20K)
Trim Colour: Standard Trim White: Black trim available by special order
Rough-in Plates available for new construction
10′ low voltage extension cables available
Warranty: 5 Year
Lifespan: 36,000 Hours

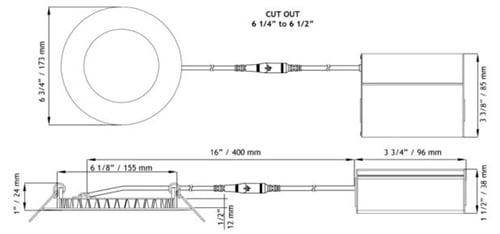

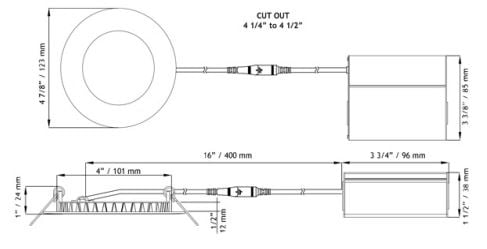

Download the full specs on each of the Economy Line Lotus LED Panels:
