COB Corner Connector

CON182 8mm COB Corner Connector, strip to strip
CON182 8mm COB Corner Connector, strip to strip
8mm Beetle Clip Single Colour Connectors

COB Corner Connector

$2.00

Use this invisible 8mm COB Corner Connector to turn the corner when installing our single colour LED flex strip lights. Available in 8mm width.

Easy to use and creates a secure connection by piercing through the strip’s PCB. Ideal for the 12V COB and 24V COB indoor flex strips.

Low profile and fits perfectly within most of our aluminum profiles.

Product Options:

In stock

COB Corner Connector

This solderless strip-to-strip COB Corner Connector is used whenever you need to make a turn at a corner when installing our single colour flexible LED strip lights. The included 15cm wire makes your installation quick and simple. Just push your flex strip through the gap. Make sure that the copper contacts on your strip reach the inner walls of the connector. To secure the connection, crimp down the two metal tabs so that it pierces through the flex strip’s PCB. Repeat the steps for the other end of the connector and you’re done!

This connector creates a secure connection without the need for soldering. Be sure to watch your polarity when working with all LED flex strips. Your positive and negative sides of the flex must always line up or the strip will not light.

Available in an 8mm width. Ideal for use with the 8mm 12V COB and 24V COB indoor strips.

Low profile and fits perfectly within most of our aluminum profiles.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email info@ledlightscanada.com. We are here to help.

Type: Corner Connector – strip to strip
Strip Width: 8mm
Strip Type: 2-pin, 2-conductor, single colour
Max. Voltage: 36V DC
Max. Current: 3.5A

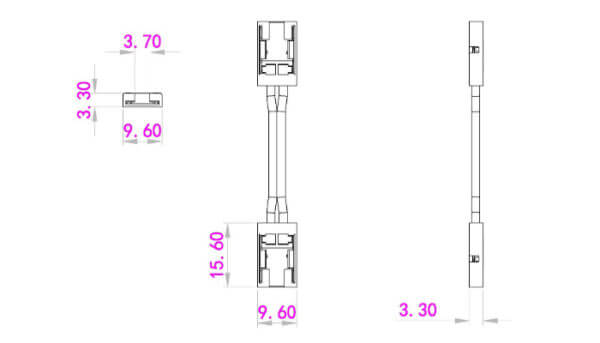

Size: 15.6 x 9.6 x 3.3mm
Material: Polycarbonate, Copper, and PVC
Wire: 150mm, 20AWG
