Beetle Clip Lead Connector

8mm Beetle Clip Lead Connector
8mm Beetle Clip Lead Connector
Beetle Clip Wire Lead
8mm Beetle Clip Lead Connector

Beetle Clip Lead Connector

$2.50$2.56

Use the solderless Beetle Clip Lead Connector to add a lead to your cut pieces of single colour flex strips.

Low-profile and fits perfectly within our aluminum profiles.

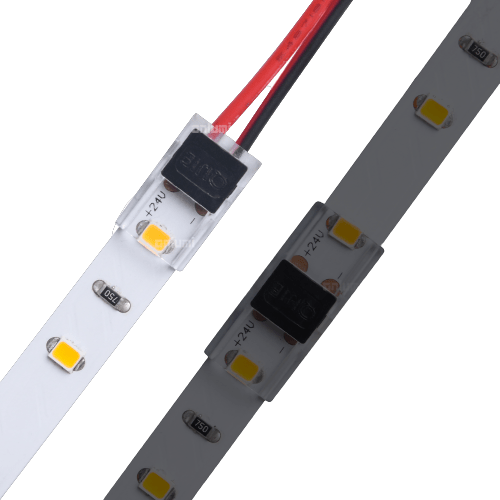

Available in 8mm and 10mm width. The 8mm connector is ideal for our standard 3528 indoor flex strips, and the 10mm connector is perfect for the brighter 5050 indoor flex strips.

Product Options:

Clear

Beetle Clip Lead Connector

Need a wire lead on the end of your single colour LED Flex strip lighting? Use the solderless Beetle Clip Lead Connector to add a lead to your cut pieces of single colour flex strips. Perfect for use when installing single colour LED flex strips far from its power source since you provide any length of low voltage wire. Low-profile and fits perfectly within most of our aluminum profiles.

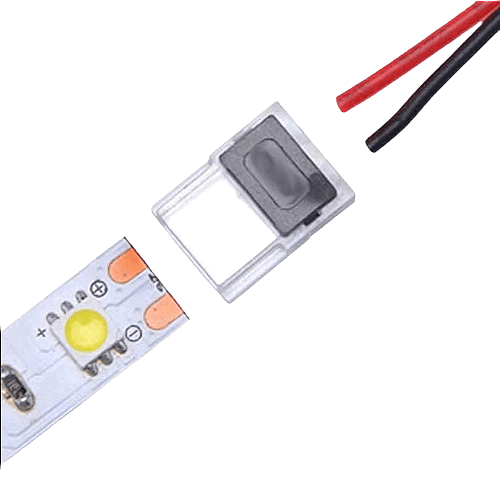

The Beetle Clip Connectors create secure connections without soldering. Quick and simple to install. First, expose the strip’s PCB by peeling off a little bit of the sticker paper. Push the flex strip making sure that the edges of the flex strip’s PCB reach the inner walls of the connector. At the same time, push the 2-conductor wire through the other end of the connector, making sure the polarity is correct. Once all the points are aligned, press the black button and you’re done! This creates a secure connection by simultaneously piercing through the strip’s PCB and pushing the wires down.

Please note that the wire is sold separately. View our 10ft 22AWG 2-conductor wire.

Available in 8mm and 10mm width. The 8mm connector is ideal for our standard 3528 indoor flex strips, and the 10mm connector is for the brighter 5050 indoor flex strips.

Have questions? Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email info@ledlightscanada.com. We are here to help.

Type: Lead – strip to wire
Strip Width: 8mm, and 10mm
Strip Type: 2-pin, 2-conductor, single colour
Max. Voltage: 36V DC
Max. Current: 3.5A
Size: 15.6 x 9.6 x 3.3mm
Material: Polycarbonate, Copper
Wire: no wire, fits 22~20AWG 2-conductor wire
