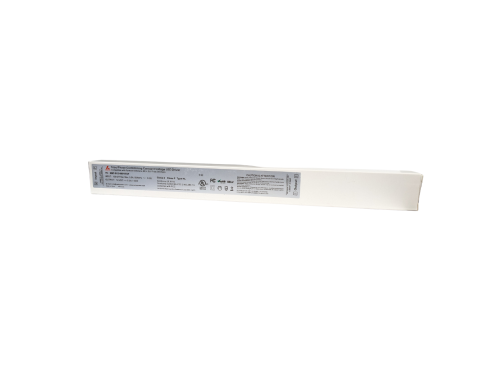

60W 12V Slim Dimmable Driver

60W 12V Slim Dimmable Driver


This Slim dimmable 60 watt 12V DC Constant Voltage driver is compatible with most Triac and ELV dimmers. Another advantage is the ability to direct wire, therefore, eliminating the need for a junction box.


  • Overload Protection
  • Short Circuit Protection
  • Over-Temperature Protection
  • Suitable with all Dimmer Controls
  • Limited 5-year Warranty

Product Options:

In stock

SKU: DVL1060 Categories: , , Tags: , , , , ,

60W 12V Slim Dimmable Driver

Get our 60W 12V Slim Dimmable driver for your home lighting project. This driver is compatible with Triac Dimmers, Forward Phase dimmers and Magnetic Low Voltage dimmers. We recommend the Lutron DVCL153 dimmer with any of our dimmable products. It has built-in protection against both overload and over-temperature to assure your safety. Surface mount this low-profile super slim driver under kitchen cabinets and other narrow spaces to make installation quick and convenient. It is a very versatile driver that is suitable for LED lighting, signs, and many other applications.

This 12V DC constant voltage output driver and is suitable in dry and damp locations. Smarts Dimmable drivers and cETL certified for direct wiring to the terminal block on the 120V input side with up to 14 gauge wire. Being able to direct connect eliminates the requirement for an additional electrical junction box. The electrical code requires line voltage to be protected by a junction box. If you want to add a cord, we also have an AC cord kit available to plug into a power outlet. By adding a cord set, you can plug in the driver into a switched receptacle that is controlled by a dimmer switch.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email info@ledlightscanada.com. We are here to help.

Size: 300 x 32 x 20mm (11.8 x 1.8 x 0.8 inches)
Input: 100~277V AC 47~63Hz
Input Current: 0.5A @ 100V AC
Output: 12V DC, Constant Voltage
Rated Power: 60W
Output Current: 5A max
Minimum Load: 5%
Maximum Load: 83%
Short Circuit, Overload protection, and Over-temperature protection
Damp rated (indoor use)
Temperature: -40C – +60C
Ambient Temperature ta: Max. 60C
Certification: Class II AC Input (2-wire connection, requires no ground) -Complies with FCC Part 15B
View Full Specs
