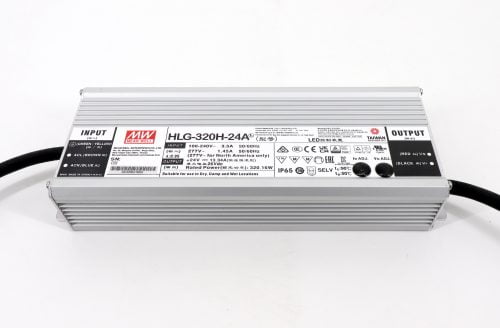

320W 24V LED Driver

320W 24V LED Driver


320 watt 24V DC sealed constant voltage/constant current LED driver. A higher wattage power supply perfect for large projects around the home or office. IP65: suitable for dry, damp, and wet locations.

Product Options:

In stock

320W 24V LED Driver

This non-dimmable 320W 24V LED Driver is capable of working under harsh conditions such as high dust, humidity, and vibration. With a built-in power factor controller function, the driver works at 95% efficiency. It has free air convection to keep it cool while it works. Additionally, the 320W driver was designed to have many safety protections. These protections include short-circuit prevention, over-heating, and going over current or voltage. It is compliant with worldwide safety regulations for lighting in anti-vibration and heat dissipation with its silicone potted aluminum case.

The 320W 24V DC CV LED driver comes with a 3-year warranty. The IP67 waterproof rating allows indoor or outdoor use. The universal AC input and full range (up to 277 V AC) makes this driver useful in many applications. It can be switched from Constant Voltage to Constant Current if you need it. There also is a voltage supply adjustment to step up the voltage when running long lengths of wire or lights if there is too much voltage drop.

Click here to view our full selection of 24V non-dimmable drivers.

Please contact us with any questions you may have on this power supply option at 800-677-2698. As a recognized component part, the cRUus certification permits use in Canada under those standards.

cRUus Logo

3-year warranty
Suitable for dry, damp or wet locations

Size: 227 X 92 X 47mm (8-15/16 x 3-5/8 x 1-7/8 inches)
Input: 100~277VAC (50-60Hz)
Input AC Current: 13A
Output: 24V DC, Constant Voltage/ Constant Current
Technical Data: Short-Circuit, Over Current, Over Temperature and Overload protection
Environment: IP65 rated (indoor /outdoor use)
Efficiency: 95%
Working Temperature: -40- +90C
Class 1 rated
