350W 12V DC CV LED Power Supply

350W Open Frame 12V DC Power Supply
350W Open Frame 12V DC Power Supply
350W Open Frame 12V DC Power Supply

350W 12V DC CV LED Power Supply

$107.50

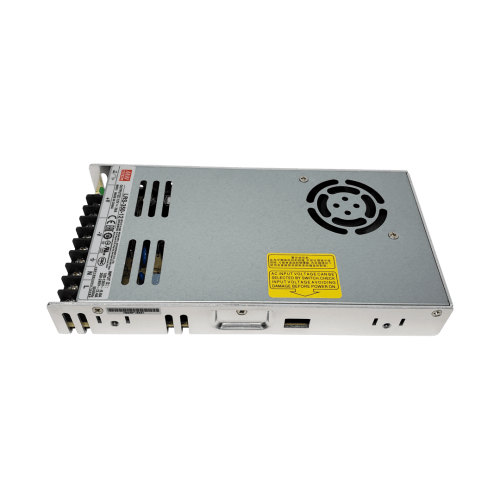

350 watt 12V DC open frame constant voltage power supply will handle larger installations of LED lights. Being an open frame design requires this unit to be installed in a junction box, making the line voltage terminals inaccessible for safety and electrical code concerns.

Product Options:

In stock

SKU: DVR831 Category: Tags: , , , ,

350W 12V DC CV Power Supply

Our high efficiency, high reliability and long-lasting 350W 12V DC CV Power Supply will serve your needs when you have long lengths of task lights, or higher wattage LED lights working together. Make sure you install this device in an appropriate sized electrical box since this is an open frame module.

You can select 115VAC or 230VAC with a simple switch on the unit. All our 120V products meet international safety regulations. This open frame unit includes a built-in cooling fan to keep itself cool and safe. This driver has 5G anti-vibration, 300VAC surge protection for five seconds and complete protection function. You won’t lose power to the circuit with this power supply’s high efficiency, low no-load power consumption (less than 0.75W). This power supply is not dimmable. If you require a dimmable power supply you can view our selection by clicking here.

Have any questions about the product? Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email support@ledlightscanada.com. We are here to help.



Size: 215 X 115 X 30mm
Input: 90~132VAC (47-63Hz)
Input AC Current: 6.8A/115VAC
Output: 12V DC (29 A, 350W), Constant Voltage
Technical Data: Short Circuit, Over Current, Over Temperature and Overload protection
IP20 rated (indoor use)
Efficiency: 85%
Working Temperature: -25- +70C
Warranty: 3 years
