300/m 24V LED Flex

300/m 24V LED Flex


24V DC high output indoor flex is your best choice for kitchen task lighting.  The strip lights as a solid line to eliminate the reflection of “dots” on your countertop. The high output of light requires this flex to have a metal heat sink (aluminum profile, u-channel or existing fixture).

Product Options:

SKU: FLXQ903, FLXQ905, FLXQ907. Categories: , , Tags: , , , , ,

300/m 24V LED Flex

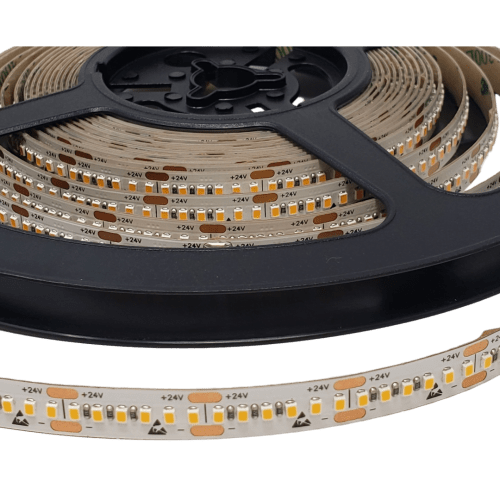

Experience the power of this extraordinary 300/m 24V LED Flex Strip. Many of our customers have requested a flex strip that appears more continuous and linear as if it were a solid light. These 2216 LED chips are smaller and closer together than the standard 3528 (3.5 x 2.8mm) LED chip. The light output of this high output flex is up to 2200 lumens per metre. When installed in an aluminum profile with a frosted lens, the light spread is uniform, eliminating the dots that reflect on the countertops. 2216 flex is the most popular option for our custom under cabinet lighting.

With this high output flex, mounting to a metal surface is recommended. The metal acts as a heat sink to extend the life of the flex strip. We carry a wide range of aluminum profiles for use with this flex. Soldering of additional leads is required with these strips until quick connectors become available.

The tape can be cut every 3 LEDs along the visible cut line to meet your installation requirements. They are inexpensive to operate, environmentally safe, contain no mercury and produce zero UV. This product is for indoor use only. Due to the high lumen output of this flex, we recommend using an adequately sized, dimmable LED driver. The 24V flex is 5.45W per foot. If you need assistance in sizing the correct driver, please call us at 1-800-677-2698

Currently available in 3000K, Warm White in a 5M (16.4′) roll

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email support@ledlightscanada.com. We are here to help.

Length: 5M (16.4′) roll
Number of LEDs: 300 per meter roll
Type: 1500 – 2216 SMD LEDs / roll
Voltage: 24 Volt DC
Current: 0.75A/m
Watts: 18W / Meter ( 5.45W/ft )
PCB Colour: White
Size: 8mm wide X 2mm high
Available Colours: Warm White
Application: Double Sided 3M tape
Light Spread: 120 degrees
Dimmable: YES CRI:90-95
Lumens: 300 leds/m, 6-8LM per LED, 1800-2400LM per meter
Lifespan: 50,000 Hours
Indoor Use Only
