FIX5 Slim Lock CCT Lead Connector
6FIX5 Slim Lock RGB Lead Connector

Slim Lock Lead Connectors

$1.49$2.10

Use the solderless Slim Lock Lead Connector to add a lead to your cut pieces of flex strips. Options available for Single Colour, CCT, and RGB flex strips.

Low-profile and fits perfectly within most of our aluminum profiles.

Please note that the wire is sold separately. See direct links to our wire options: 2-conductor, 3-conductor, and 4-conductor.

Product Options:

Clear

Slim Lock Lead Connectors

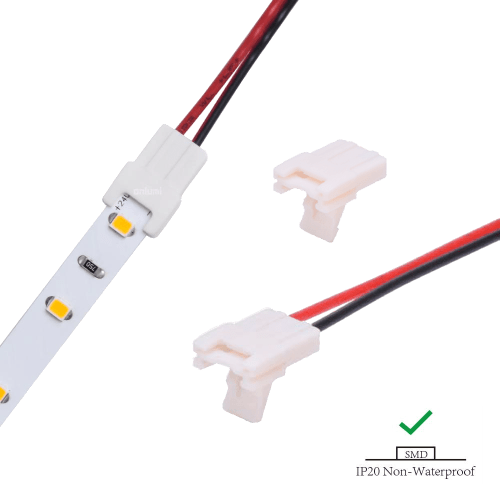

Need a low-profile wire lead on the end of your LED strip lighting? Use the solderless Slim Lock Lead Connectors to add a lead to your cut pieces of flex strips. Perfect for long-distance installations, since you provide any length of low voltage wire. Low-profile and fits within most of our aluminum profiles and other narrow spaces. Options available for 8mm Single Colour, 10mm Single Colour, CCT, and RGB flex strips.

The Slim Lock Lead Connectors create secure connections without soldering. Quick and simple to install. First, attach the wires to the connector by pushing them into the groove. Next, expose the strip’s PCB by peeling off a little bit of the sticker paper. With the tab facing down, insert the flex strip in the gap. Once the polarity is aligned, close the tab in place and you’re done!

Please note that the wire is sold separately. See direct links to our wire options: 2-conductor, 3-conductor, and 4-conductor.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email info@ledlightscanada.com. We are here to help.

How to install the wires:
Slim Lock Lead Connector Instructions

How to install the flex strips:
Slim Lock Wire Lead Instructions

Type: Lead – strip to wire, wire not included
Strip Width: 8mm Single Colour, 10mm Single Colour, 10mm CCT 10mm RGB
Strip Type: Single Colour, RGB, CCT, RGB
Max. Voltage: 24V DC
Max. Current: 6A
Size: 8mm – 16 x 10.4 x 4.5mm | 10mm – 16 x 12.4 x 4.5mm | RGB – 20.6 x 13 x 4.5mm
Material: Polycarbonate, Copper, and PVC
Wire: no wire, fits 22AWG~20AWG
