Hippo L-Type RGB Corner Connector

CONHL10 Hippo L-Type RGB Corner Connector

Hippo L-Type RGB Corner Connector

$2.50$4.60

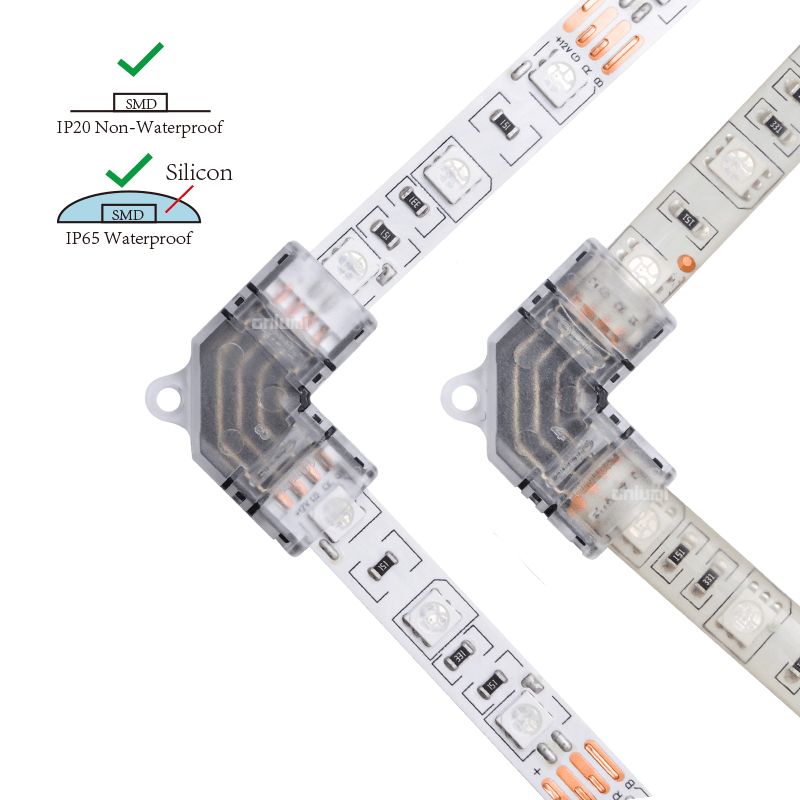

The Hippo L-Type RGB Corner Connector eliminates the extra wire for a secure 90-degree turn.

Quick and simple to install. Available in indoor and outdoor options. Ideal for use with our 10mm RGB indoor flex strip and most 10mm 4-conductor flex strips.

Product Options:

Hippo L-Type RGB Corner Connector

Need to make a secure 90-degree turn with your RGB flex strip? The Hippo L-Type RGB Corner Connector eliminates the extra wire for a secure 90-degree turn.

Easy to install without soldering. First, peel a little bit of the sticker paper off of the strip. Push the strip into the groove and place it on the four metal pins. Make sure that the four pins line up with the copper contacts on the flex strip. Once all the pins are aligned, clamp the plastic tab down. Repeat the same steps for the other end. Check that the polarity is consistent and you’re done! The Hippo Connectors create secure connections by piercing through the flex strip’s copper contacts.

The Hippo Connector can handle a higher current max. range at 5A compared to other standard connectors only at 3.5A. They are also available in both indoor and outdoor options. The IP20 indoor option is ideal for use with our 10mm RGB indoor flex strip. The Hippo L-Type RGB Connector is also compatible with most 10mm wide 4-conductor low voltage flex strips.

View our full selection of Hippo Connectors.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email info@ledlightscanada.com. We are here to help.

Type: L-Type 90-degree Corner Connector – strip to strip
Strip Width: 10mm
Strip Type: 4-pin, 4-conductor, RGB
Max. Voltage: 24V DC
Max. Current: 5A
Size: 26.9 x 14.6 x 7.7mm
Material: Polycarbonate, Copper, and PVC
Wire: no wire
