Description

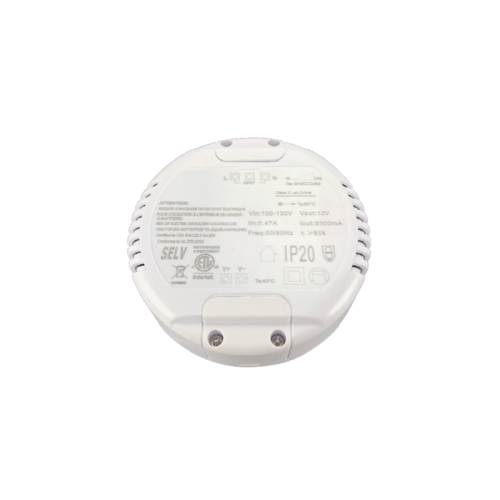

40W 12V Round Dimmable LED Driver
This 40W 12V Round Dimmable LED Driver is a Constant Voltage Class 2 driver. It works in both dry and damp locations with its IP20 rating. The design and certification allow for direct wiring into the 120V input with 14/2 Lumex eliminating the need for a separate junction box.
The small size allows for easy mounting within an electrical box or under a kitchen cabinet when converting from fluorescent fixtures to low-voltage LEDs.
With its excellent dimming range down to 5%, you are able to fully enjoy the capability of the LEDs you are powering with the driver. This round dimmable driver works with most standard LED dimmers.
View our full selection of 12V Dimmable Drivers.
Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll-Free at 800-677-2698 or email info@ledlightscanada.com.
If you live in Canada, it is a delight to us that you have made the choice to “put your money where your house is”. LED lights Canada has been helping Canadians for over 15 years and we are glad to share our experience with you.
Tech Specs
Input:
Voltage Range: 100VAC-130VAC
Frequency: 50Hz / 60Hz
Wiring Type: Terminal Block
Output:
Voltage Range: 12VDC – Constant Voltage
Rated Power: 40W Max – 3300 mA
Wiring Type: Terminal Block
Certifications:
Class Type: Class 2
Safety Certification: cETLus
Environmental rating: IP20
Other:
Dimensions: D 100mm x H 30mm
Dimmable: Yes – Down to 5%
Lifespan: 50,000 hours
Warranty: 5 years
