EEL 6-inch Directional UltraThin Gimbal

EEL 6-inch Directional UltraThin Gimbal


Replace those 6-Inch fixtures with a directional LED panel

These 6-inch Directional UltraThin panel lights do not require a pot light housing. Install your lights freely since they only need 2 inches of clearance. Please note that these are not IC-rated.

Product Options:

SKU: EPT Category:

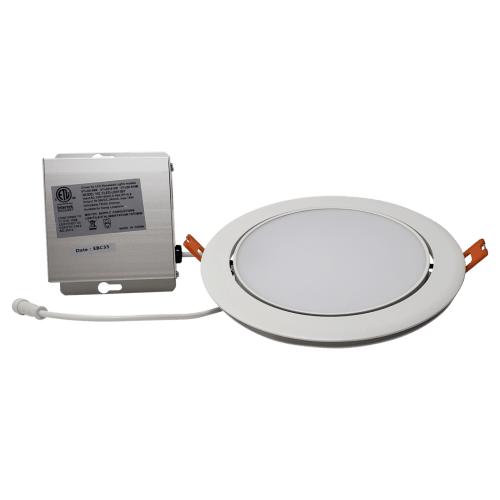

EEL 6-inch Directional UltraThin Gimbal

Directional, and low-profile with a wide-beam angle

Install the 12W EEL 6-inch Directional UltraThin Gimbal without the need for a standard “Pot Light Can.” Traditional recessed lighting uses a “pot light can” that mounts in the ceiling to hold the bulb and the trim ring.

If you are planning a renovation, building a new house or adding additional light to your home, positioning your recessed lighting exactly where you want it is a common issue.

Worry less when working around the heating ducts, plumbing, gas pipes, and vents since all you need is 2 inches of clearance to install this style of panel light. If you are working with limited ceiling space, this is the perfect option for you. The connection box comes with the panel light and holds the dimmable driver in an isolated compartment so the line voltage splice can be in the same box.

Please note that these are not IC-rated so they cannot be up against insulation and require a vapour hat when installed. This EEL gimbal offers a 5 Year Warranty and rated for 50,000 hours

View our full selection of Recessed Pot Lights.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email We are here to help.

Light Temperature: 3000K Warm White & 4000K Natural White
Lumens: 700
CRI: 80
Beam Angle: 120 degrees
Equivalent to 65W Halogen
Trim Colour: Standard White Trim
OD: 7″
Cut-out: 6 1/8″
Thickness: 1″
Warranty: 5 Year
Lifespan: 50,000 Hours
Ambient Temperature: -40 to 40 degrees
Damp Rated
