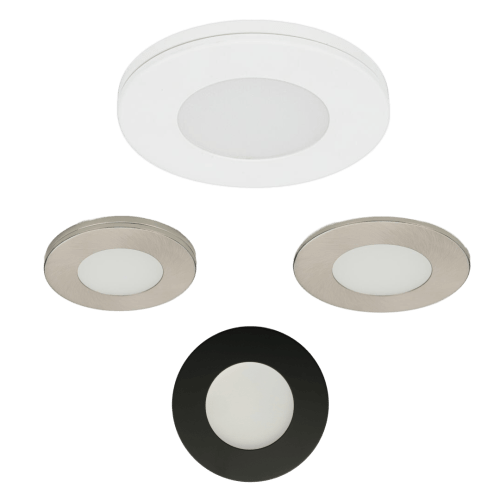

LED Slim Cabinet Puck Light
LED Slim Cabinet Puck Light
$18.75 – $21.25
12V, DC 2.2W even-lit cabinet puck lights can be recessed or surface mounted.
Available in 3000K warm white, 4000K natural white, 6000K cool white. Various trim options available: White, Black, and Satin Nickel.
Product Options:
LED Slim Cabinet Puck Light
Side-lit, ultra-low profile LED Cabinet puck light
This 2.2W, 12V DC LED Slim Cabinet Puck Light is side lit and comes with a frosted lens producing an even light over the entire surface. You cannot see any of the LEDs, therefore no dots! You can surface mount or recess mount the puck light and is available in White, Black or Satin Nickel.
Separate the light from the surface mount ring, and it is ready to recess into a 2.25″ cutout. This puck produces 155 lumens making it the best choice for use inside your cabinets or in your RV. It also can be used or for many marine applications. The magnetic trim ring provides a beautiful finished touch to your lights. The rated lifespan is f50,000 hours. If you want to dim these lights, you can do this on the line-voltage or low-voltage side. They dim beautifully with compatible dimming technology.
View our full selection of Kitchen Lighting.
Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email info@ledlightscanada.com. We are here to help.
Description: Includes LED SMD puck light, wire leads and matching surface mount bezel, mounting screws
LEDs: side mounted LEDs
Voltage: 12V DC
Watts Consumed: 2.2
Light output: 176 Lumens
Light Direction: 110 degree
Lifespan: 50,000 hours
Colour: 3000K, Warm White: 4500K, Natural White and 6000K, White
Size: Ø 75mm x H 9.5mm
Housing Options: White, Black and Satin Nickel
Cover: Frosted Glass
Cut Out to recess: Ø2.25 in
Trim ring: Certification: ETL approved (CSA and UL recognized)
Dimmable: YES
These SMD LED Puck lights are designed to work with a 12V DC LED Driver and are not a direct replacement for existing halogen puck lights which operate on 12V AC current. If you are replacing your halogen puck lights you must also replace the power supply with a 12V DC LED driver.
