COB Wire Lead

CON180 8mm COB Wire Lead

COB Wire Lead

$2.00

Need a wire lead on the end of your single colour LED COB Flex Strip? Use this invisible COB Wire Lead to add a lead to your cut pieces of flex strip.

Easy to use and creates a secure connection by piercing through the strip’s PCB. Available in 8mm width. Ideal for the 12V COB and 24V COB indoor flex strips.

Low profile and fits within most of our aluminum profiles.

Product Options:

In stock

SKU: CON180 Category: Tags: , , , , , , , , ,

COB Wire Lead

Need a wire lead on the end of your single colour LED Flex strips? Use the COB Wire Lead connector to add a lead to your cut pieces of COB indoor strips. The included 15cm wire lead makes your installation quick and simple. Just push the flex strip through the gap. Make sure that the copper contacts on your strip reach the inner walls of the connector. To secure the connection, crimp the two metal tabs so that they pierce through the flex strip’s PCB and you’re done!

This connector creates a secure connection without the need for soldering. Be sure to watch your polarity when working with all LED flex strips. Your positive and negative sides of the flex must always line up or the strip will not light.

Available in an 8mm width. Ideal for use with the 8mm 12V COB and 24V COB indoor strips.

Low profile and fits within most of our aluminum profiles.

Canadian support is available both before and after the sale. We will assist you in layout and design as well as provide tech support for any product you purchase from us. Call us Toll Free at 800-677-2698 or email us at info@ledlightscanada.com. We are happy to help.

Type: Lead – strip to power
Strip Width: 8mm
Strip Type: 2-pin, 2-conductor, single colour
Max. Voltage: 36V DC
Max. Current: 3.5A
Size: 15.6 x 9.6 x 3.3mm
Material: Polycarbonate, Copper, and PVC
Wire: 150mm, 20AWG

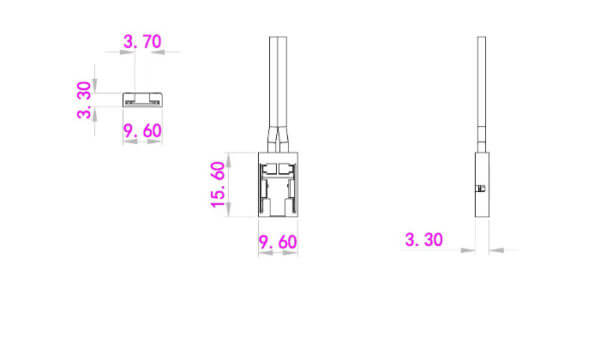

Diagram Unit: mm
